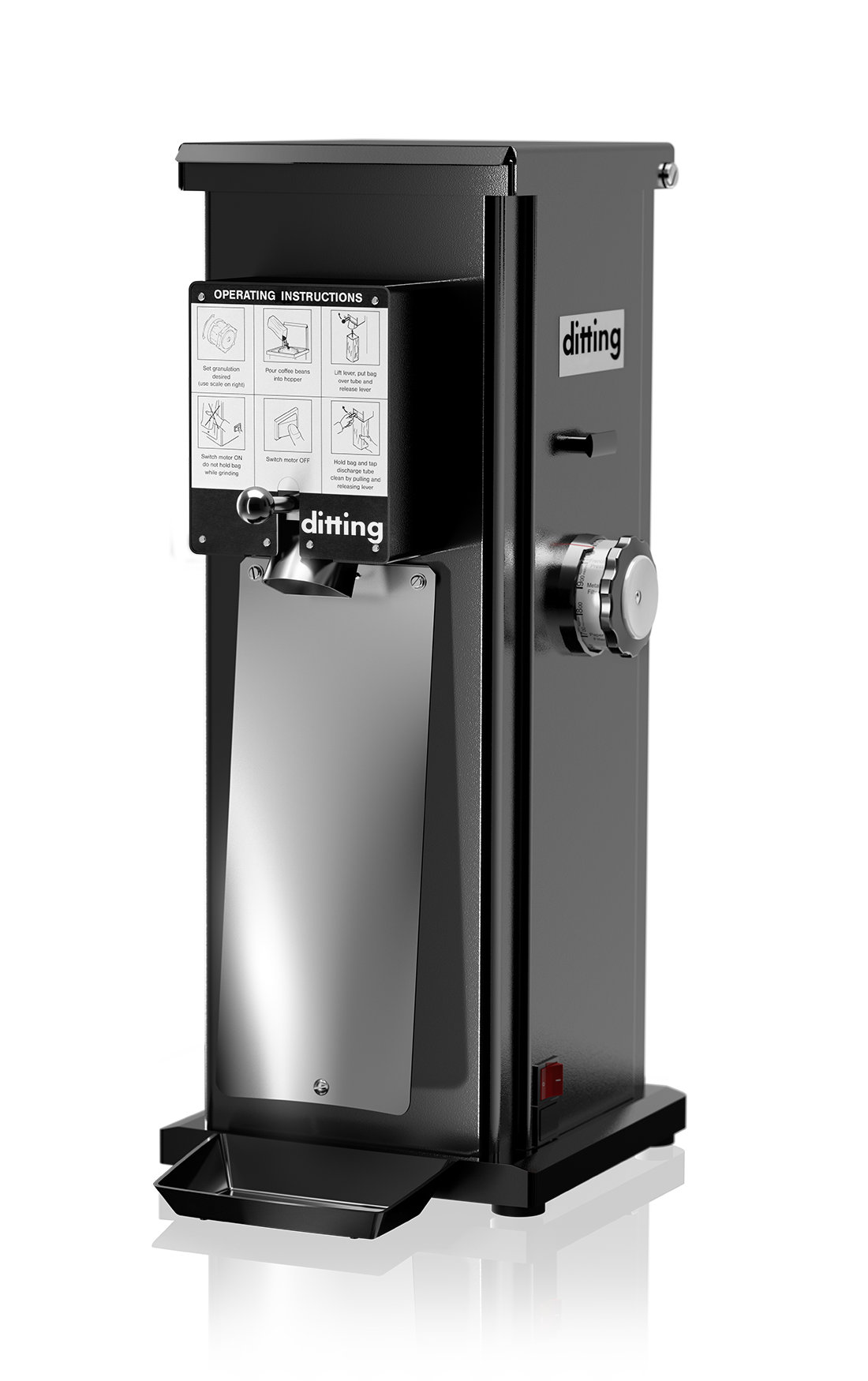

The 1403 convinces with its immense grind speed, powerful performance and high daily capacity. It is the ideal solution for busy coffee shops as well as roasteries with high workloads. (requires Three Phase Power Supply)

• Specially developed 140 mm burrs allow high grinding capacity for all grind adjustment steps

• Wear-resistant steel burrs

• Aromasaving consistent grinding

• Stepless grind adjustment

• Minimal retention of coffee residues left inside the slide thanks to the manual knocker

• Bag shaking device ensures an optimal filling of the bags

• Very easy to maintain and to clean

Voltage // frequencies // phases:
380-415 V // 50/60 Hz // 3~
200-240 V // 50/60 Hz // 3~

Revolutions per minute: 1400 rpm (50 Hz)
Burr diameter: 140 mm
Burr material: Steel
Average grinding capacity*:  2200 g/min
Bean hopper capacity: approx. 1100 g
Nominal power: 1700-2000 W
Dimensions (w x h x d): 260 x 640 x 340 mm
Dimensions of packing (w x h x d): 330 x 730 x 400 mm
Net weight: 38 kg
Shipping weight: 40 kg

Standard colors:
Black
Brown
Red

Available versions:

• KFA: Automatic bag clamp (no bag shaking unit)

• KR: Manual bag clamp (with bag shaking unit)

Listings: CE-conform, CB, UL, NSF, Additional on request

Standards: On request

SPECIAL EQUIPMENT

• Grind adjustment extension

* Depends on the grinding goods and the chosen degree of fineness.
   All measured values under laboratory conditions. Other electric specifications available on request. Subject to change without prior notice.
