Fracino stainless steel lower draw, to be mounted under the tilting under counter knock out drawer it will catch the waste coffee grounds. BUILT TO ORDER

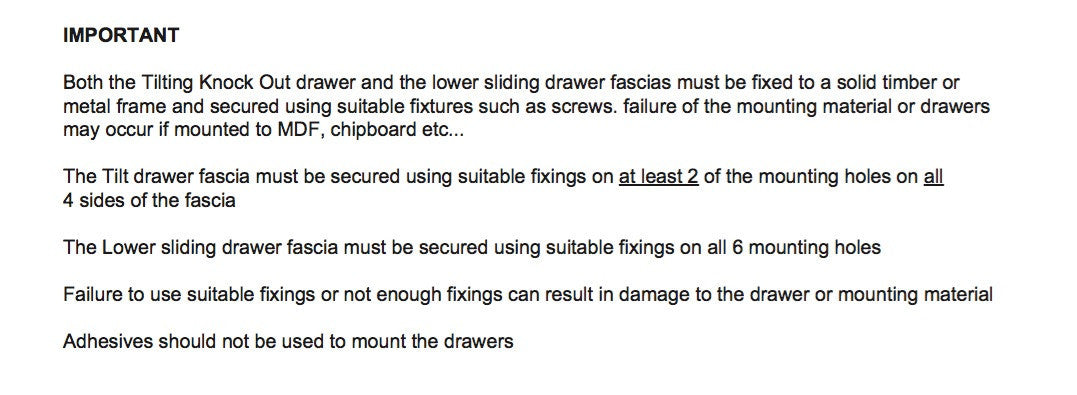

The under counter tilting knockout draw is designed to fit underneath a counter top and tilts as the handle is pulled forward. The coffee grounds when knocked out of the filter holder then drop into the lower drawer which is located directly underneath the tilting drawer. The lower draw is normally lined with a bin liner which is taken out and disposed of when full. Both the Under Counter Tilting drawer and the Lower Drawer must be fixed onto a solid timber frame or metal structure and secured using suitable fixtures. Failure of the mounting may occur of fitted to MDF chipboard.

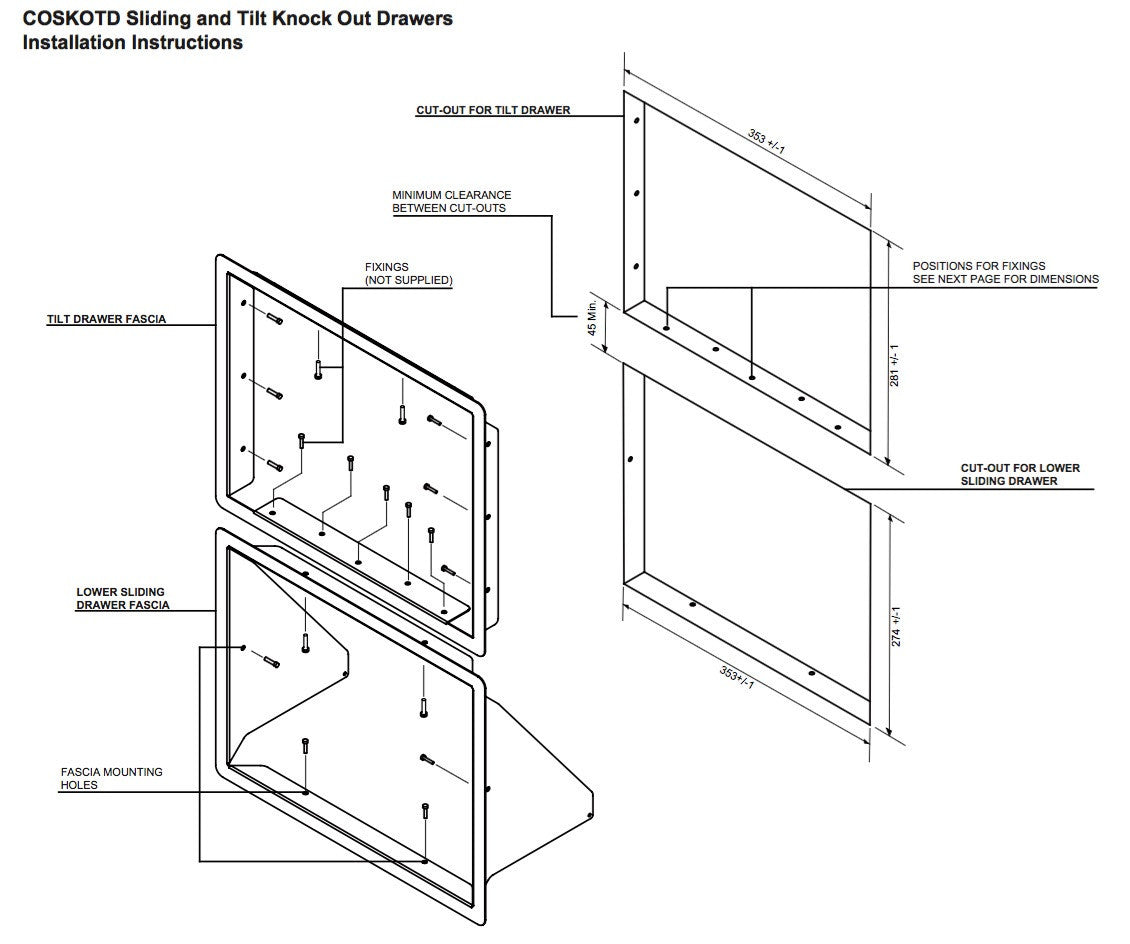

Cut out required in the counter front for mounting the tilting under counter knock out draw is height 278mm and width 354mm.

Please note, this draw has been designed to catch the waste grounds dropped by the tilting under counter knock out draw mounted above it.
